The one that started it all:
FYREBX T3
FYREBX is an innovative solution for wildland firefighting, mop-up, dust control, construction, landscaping, agriculture, mining, and industrial work.
FYREBX is a patent-pending compact track loader attachment that quickly deploys 300 gallons (1,135 Litres) of water across terrain that many trailers and other equipment are unable to reach.
The water can be sprayed from inside the cab, acting as a monitor gun, or you can deploy fire hoses and manually turn on the pump from inside the cab of the track loader.
The FYREBX T3
Add 300 GALLONS/1135 LITRES of Liquid POWER to a compact track loader!
FYREBX T3 VIDEOS
FYREBX T3 solo walkaround.
Overview of the FYREBX T3 (in partnership with FMI)
See the T3 in person!
Don’t just take our word for it
“The FYREBX allows us to replace some older more antiquated equipment with something that’s much more agile. When we have a fire out in the woods we need to get to it quickly and with a lot of firepower. …the FYREBX checks all those boxes. …it will allow us to attack an operations fire more quickly & more effectively than anything we’ve ever had before.”
Gary Warner
Gary Warner talks about what makes FYREBX awesome.
Who is the FYREBX T3 for?
The FYREBX T3 track loader attachment is one of the most agile and versatile upgrades you can get. The T3 can move 300 gallons (1,135 Litres) of water/liquid across all types of terrain.
The FYREBX T3 features a modular approach allowing for many types of accessories to expand the functionality of this loader attachment, including winches, pumps, etc.
Firefighting:
Agile, fast fire suppression. A rapid response solution with fire-related options such as foam dispersal, monitor gun, etc.
Landscaping:
Hydroseeding, Water distribution, Fertilizing, Weed/Dust control, etc.
Utility Companies:
Lawn repair, Fire response, Dust control and more.
Construction/Mining:
Hydroseeding, Water distribution, Dust control…
Agriculture:
(Wineries, Ranches, & Farms) Fire response, Watering crops/livestock, Dispersing liquids, etc.
Forestry/Timber:
Out in the woods you need a quick, intense response to operational or equipment fires.
How will you use the FYREBX T3?
Featured FYREBX T3 Accessories
DOZER BLADE
Description: A bolt-on dozer cutting edge for moving dirt, fire line work, plowing, road repairs, etc. Our most popular add-on.
STORAGE BASKET
Description: A rugged storage space for extra hose, gear, tools, equipment, and more.
HOSE & REEL KIT
Description: Mounted hose reel that allows for quick and easy deployment and recovery of hose.
4-STROKE 7HP PUMP
Description: A mounted 4-stroke 7 HP pump allows for the operation of the FYREBX when not attached to your equipment.
FYREBX T3 SPECS
Volume: 300 Gallons (1,135 Litres) of water or other water-soluble product.
Dimensions: 83" wide x 41" tall x 61" deep. (211 cm wide x 104 cm tall x 61 cm deep)
Weight: Empty 850 lbs (386 kg). Full 3,400 lbs (1542 kg).
Attaches to all Compact Track Loaders 3,000 lbs (1,361 kgs) or more.
Jet agitation up to 250 GPM (946 LPM)
Pellet hydro-mulch or hydroseed material only.
Spray from nozzle, hose, or monitor gun (monitor gun not included in the base model).
Air aspirated nozzle will produce 10:1 expansion = 3,000 gallons (11,356 Litres) of foam.
Submerged Hydraulic water pump: water flow rate with 250 feet (76.2 m) of 1.5" (38.1 mm) fire hose and a 1.5"x 5/8" (38.1 mm x 15.875 mm) tapered nozzle tip produces 115 psi @ 70 GPM (52 ksi @ 265 LPM). The hydraulic flow control was set at 16 GPM (61 LPM) to achieve these flow rates.
The hydraulic flow control can be adjusted from #5 (8 GPM/30 LPM) to #10 (16 GPM/61 LPM) on the flow control to achieve your desired water psi and GPM.
Hydraulic water pump: flow rate 5 GPM to 250 GPM (19 LPM to 946 LPM) of water.
Compact Track Loader standard hydraulic flow required.
All plumbing NST.
Cathodic protection.
Construction: Multiple interior baffles.
Exterior: 10 & 12-gauge steel.
Finish: Double powder coat on interior and exterior.
Compact track loader attachment plate: 3/8" steel (9.525 mm).
Forklift skids: 1/4” (6.35 mm) steel.
Drafting capability from two 3” (76.2 mm) ports to pump forward.
(Updated September 2023)

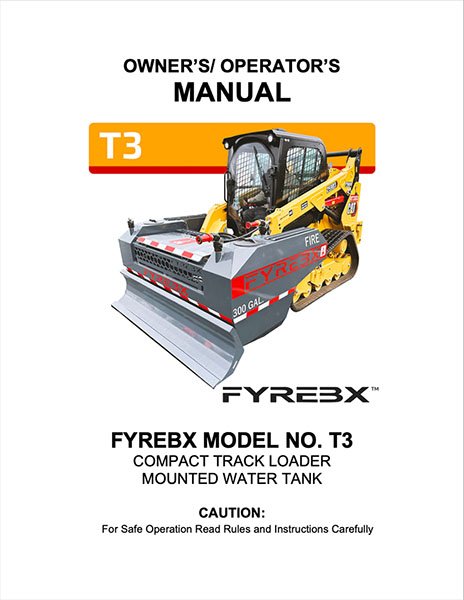

FYREBX T3 RESOURCES
Lastest FYREBX Brochure
